Light 700C Road Carbon Rims 30mm Width 30mm 35mm 40mm 45mm Profiles Tubeless With Hook
Toray T800 Super Light Road Carbon Rims 30mm external width 24mm Internal Width
(1 Reviews)
6 Sold
Super light 700C Road carbon rims 30mm width
Rims profiles: 30mm,35mm,40mm,45mm
Model number: RKTB30
Materials: Toray T700+T800
Carbon weave: UD
Finished: matt or glossy
Rim external width : 30mm
Rim internal width: 24mm
Tire type: tubeless(with hook)
Brake type: Disc brake

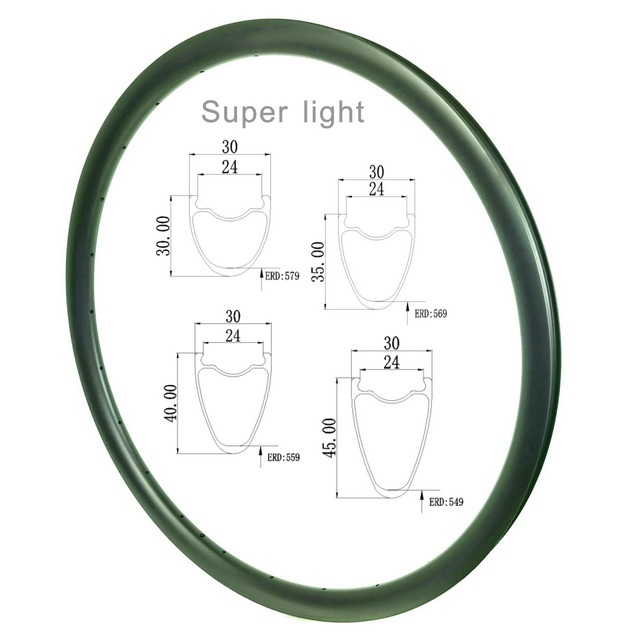

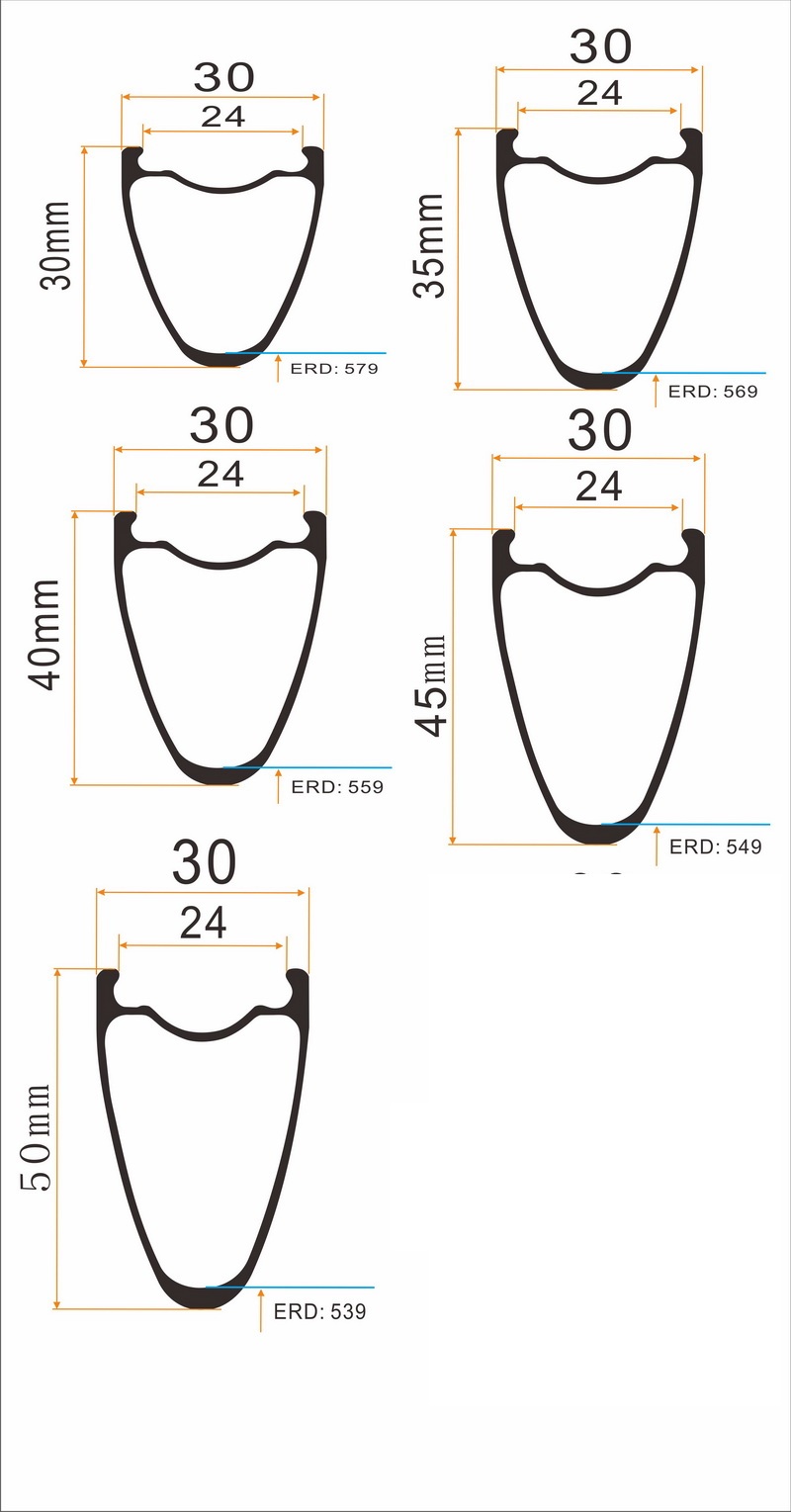

ERD: see detailed cross section drawings
Spoke holes: 20/24/28H
Spoke holes diameter : 4.5mm (standard) 2.5mm(internal holes)
Rims weight: 365±10g(30mm)370±10g(35mm)395±15g(40mm)
400±15g(45mm)430±15g(50mm)
Max. Tire pressure: 130 psi
Max. spoke tension: 130 kgf
Rider weight limited: 110kg
More Details photos:
Rims profiles: 30mm,35mm,40mm,45mm
Model number: RKTB30
Materials: Toray T700+T800
Carbon weave: UD
Finished: matt or glossy
Rim external width : 30mm
Rim internal width: 24mm
Tire type: tubeless(with hook)
Brake type: Disc brake
ERD: see detailed cross section drawings
Spoke holes: 20/24/28H
Spoke holes diameter : 4.5mm (standard) 2.5mm(internal holes)
Rims weight: 365±10g(30mm)370±10g(35mm)395±15g(40mm)
400±15g(45mm)430±15g(50mm)
Max. Tire pressure: 130 psi
Max. spoke tension: 130 kgf
Rider weight limited: 110kg
More Details photos:
