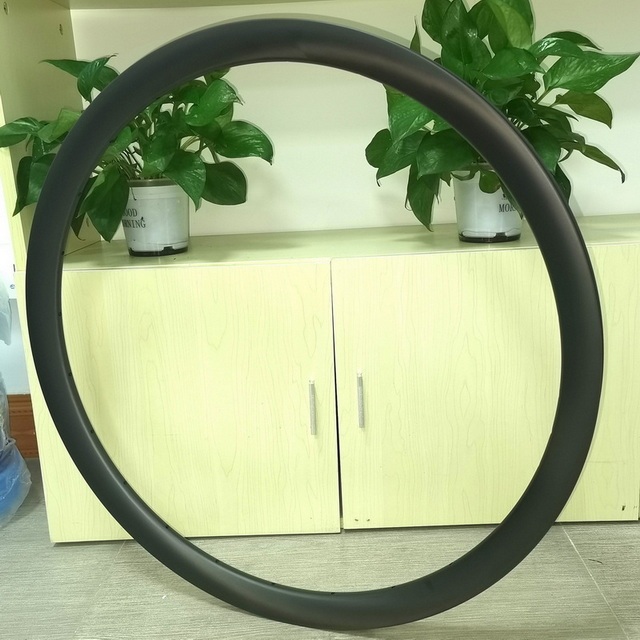

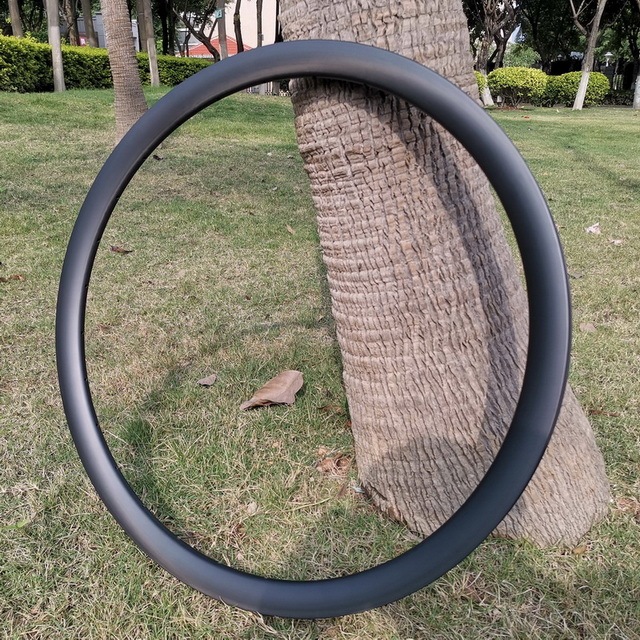

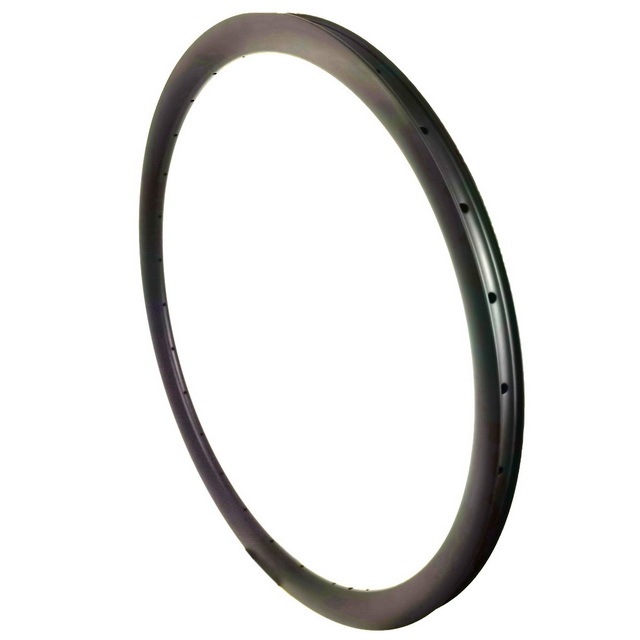

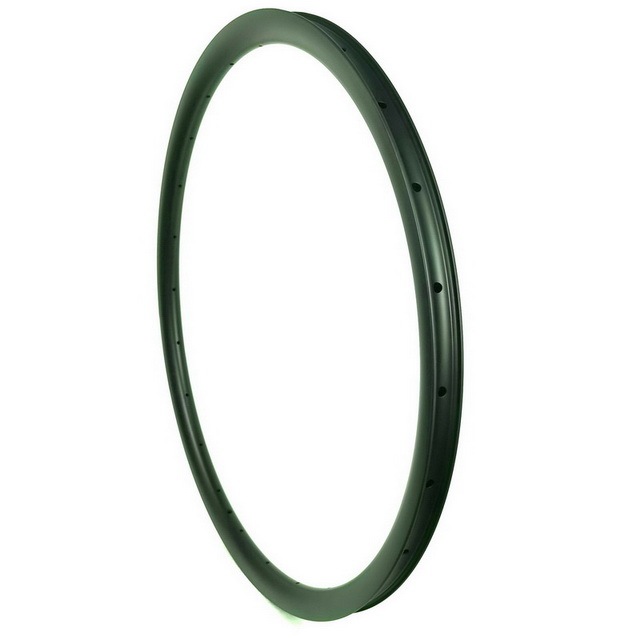

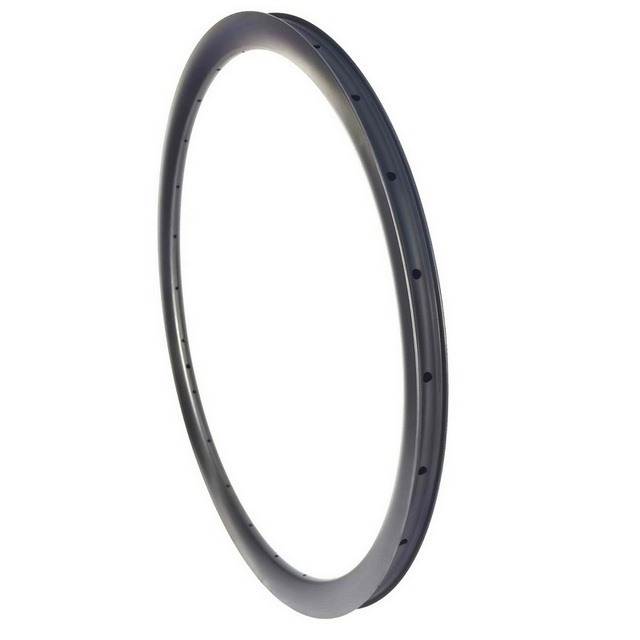

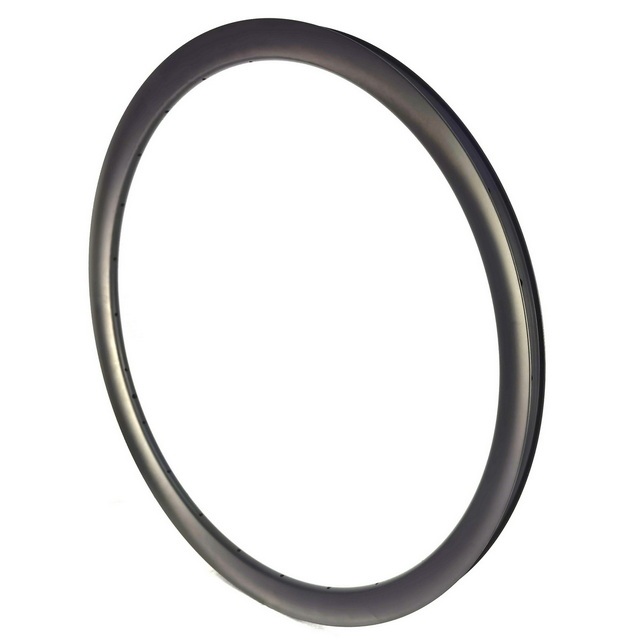

Hookless Light 700C Gravel Carbon Rims 30mm External Width 30mm 35mm 40mm 45mm Profiles Tubeless Without Hook
Toray T800 Super Light Hookless Tubeless Carbon Rims 30mm external width 24mm Internal Width
(1 Reviews)
4 Sold
Super light 700C gravel carbon rims 30mm width
Rims profiles: 30mm,35mm,40mm,45mm
Model number: RKTB30
Materials: Toray T700+T800
Carbon weave: UD, 3k
Finished: matt or glossy
Rim external width : 30mm
Rim internal width: 25mm
Tire type: tubeless(without hook)
Brake type: Disc brake

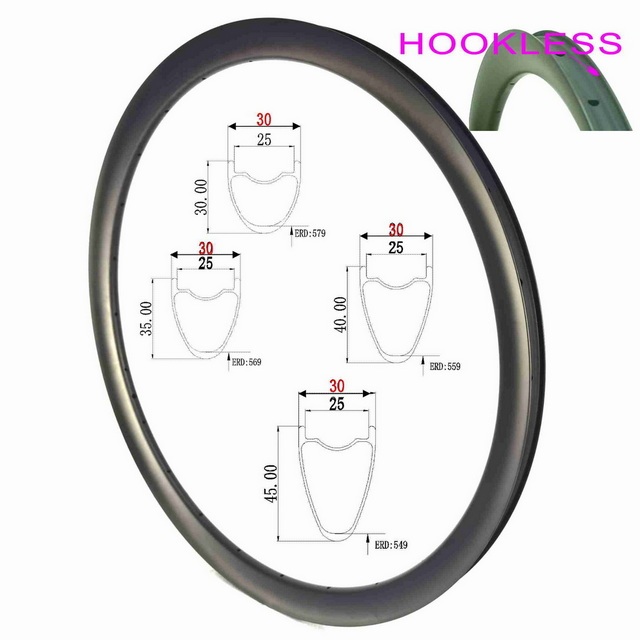

ERD: see detailed cross section drawings
Spoke holes: 20/24/28H
Spoke holes diameter : 4.5mm (standard) 2.5mm(internal holes)
Rims weight: 365±15g(30mm)380±15g(35mm)405±15g(40mm)
420±15g(45mm)
Max. Tire pressure: 130 psi
Max. spoke tension: 130 kgf
Rider weight limited: 110kg
